🔧 Fitment & Compatibility Guide – Rev Cycle

This guide will help you confirm if our parts fit your scooter or custom build. If you're unsure about any part, feel free to email us at revcyclehelp@gmail.com.

---

✅ Most of Our Parts Fit:

• Honda Dio 2 – AF27 / AF28
• Honda Dio SR / ZX (Japan)
• AF18 / AF16-based Dio clones
• Engine-swapped scooters using Dio-style horizontal 2-stroke engines

---

⚠️ Some Parts May NOT Fit:

• Honda Dio 1 (AF18 without upgrades)
• 4-stroke Honda scooters
• Other brands (SYM, Kymco, etc.) unless engine-swapped
• Wide-mount frame scooters without bracket mods

Note: Always double-check engine code and mounting points before ordering.

---

🔍 How to Check Your Model

• Look under the seat or near the engine mount for a metal plate
• If you see AF27, AF28, AF16, or AF18 — you’re good!
• If your engine has a fan on the side + CVT (belt drive), it’s likely a match

---

⚙️ Fitment Tips by Category

• Carburetors (28mm): Fit all Dio AF27/AF28 & clones – use long throttle cable

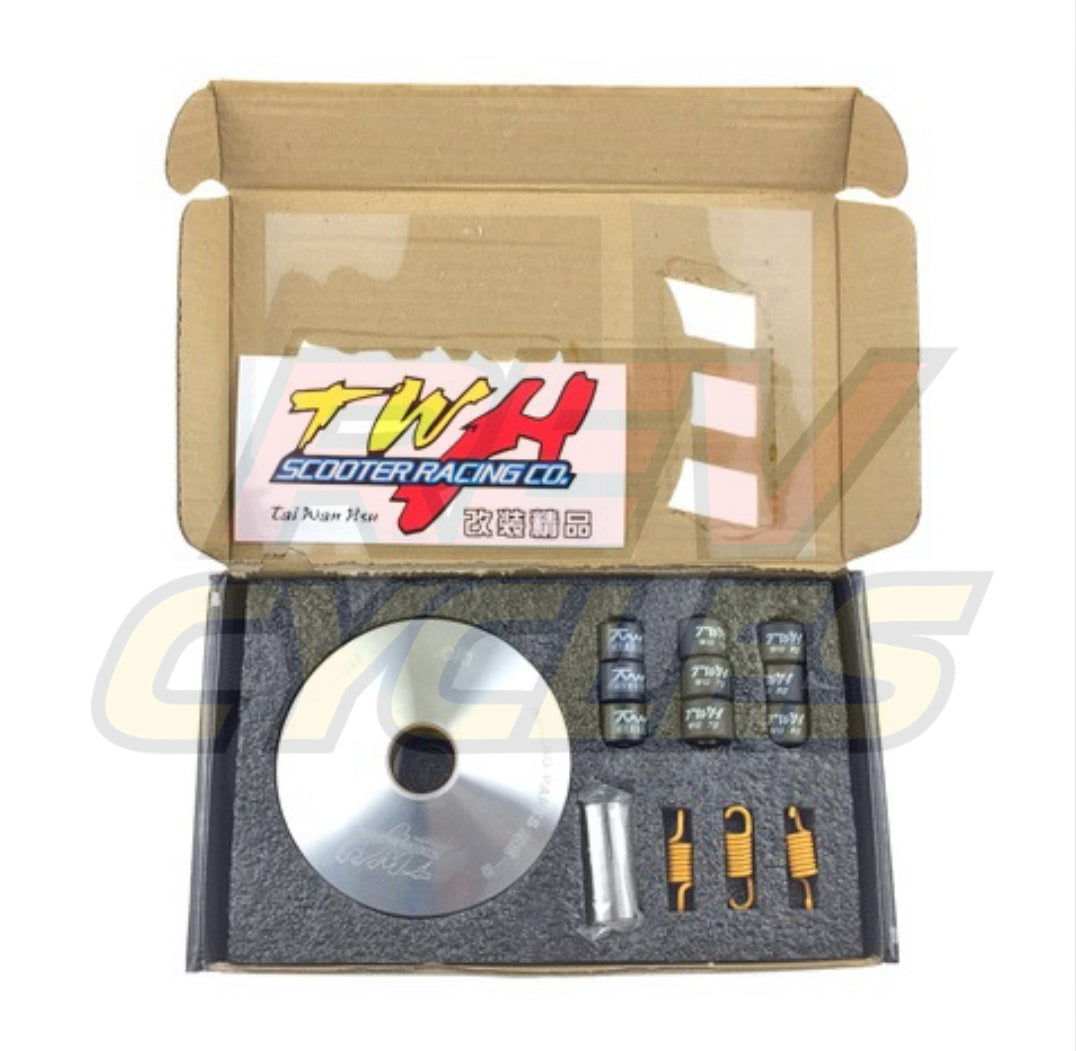

• CVT & Rollers: Variator, clutch, springs, and belts all designed for Dio-style CVT cases
• Engine Kits: 80cc–180cc water- and air-cooled engines fit standard Dio mounts
• Exhaust Pipes: ZX-style and AF27 curved pipes fit most stock and upgraded engines
• Shocks & Forks: Mount spacing designed for Dio frame forks and rear swingarms

---

📐 Frame & Engine Code Reference

Model	Code	Notes
Honda Dio 2	AF27 / AF28	Main platform for all Rev Cycle parts
Honda Dio SR / ZX	AF28	Japan-spec performance version
Clone Scooters	AF16 / AF18	Engine swap compatible – verify mounts

---

💬 Still Not Sure?

Send us photos of your engine, CVT case, or frame plate and we’ll confirm fitment for you.

Contact: revcyclehelp@gmail.com

---

Note: Performance parts are typically designed for custom and off-road builds. Please ensure proper installation and tuning by an experienced mechanic.
